– Research suggests Squadra Vision, developed by BMR, represents a significant advancement in dry squaring technology for ceramic tiles, offering fully digital automation that enhances intelligence, precision, and sustainability in manufacturing processes.
– It seems likely that this system reduces energy consumption by around 15% and grinding wheel wear by up to 40% compared to traditional laser-based methods, making it a more eco-friendly option without compromising on quality.
– Evidence leans toward Squadra Vision improving operational efficiency through real-time monitoring and minimal operator intervention, though adoption may vary based on facility size and tile formats, highlighting its versatility across different materials and sizes up to 1800x3600mm.
– While praised for boosting safety and reducing waste, some stakeholders note that initial retrofit costs could be a consideration, balanced by long-term savings in production.
Overview of Squadra Vision
Squadra Vision is a cutting-edge dry squaring machine from Italian manufacturer BMR, designed to automate the finishing process in ceramic tile production. It integrates cameras, lasers, and artificial vision systems to provide continuous monitoring and precise adjustments, ensuring tiles are squared intelligently and sustainably. This technology aligns with Industry 5.0 principles, focusing on human-machine collaboration for an “easy factory” environment. For more details, visit the official BMR page at [https://www.bmr.it/en/news-en/bmr-presents-its-new-vision-range-starting-with-the-launching-of-the-squadra-vision/](https://www.bmr.it/en/news-en/bmr-presents-its-new-vision-range-starting-with-the-launching-of-the-squadra-vision/).
Core Benefits for Manufacturers
By automating spindle adjustments and tool wear monitoring, Squadra Vision minimizes downtime and enhances tile quality consistency. It’s particularly effective for large-format slabs, reducing defects and supporting eco-sustainable practices through lower resource use. Case studies from companies like Laminam and Energieker demonstrate real-world improvements in efficiency and cost savings.
Implementation Considerations
Manufacturers looking to adopt Squadra Vision can start with the retrofit-friendly Squadra Vision Light kit, which installs without disrupting existing lines. This approach allows for gradual integration, making it accessible for both new setups and upgrades in ceramic production facilities.
In the ever-evolving world of ceramic tile manufacturing, where precision meets sustainability, innovations like Squadra Vision are paving the way for smarter, more efficient production lines. Imagine a system that not only squares tiles with pinpoint accuracy but also anticipates wear, reduces energy use, and minimizes waste—all while requiring minimal human intervention. Developed by BMR, a leader in ceramic finishing technology, Squadra Vision embodies the future of digital automation in dry squaring. This article delves deep into its features, benefits, and real-world applications, providing practical insights for manufacturers aiming to optimize their operations. Whether you’re a production manager, engineer, or industry enthusiast, you’ll discover how this technology can transform your workflow into a model of intelligence, precision, and environmental responsibility.
Understanding Squadra Vision: The Core Technology
What is Squadra Vision?
Squadra Vision is a fully digital automation solution specifically engineered for the squaring process in ceramic tile production. At its heart, it’s a dry squaring machine that eliminates the need for water-based systems, making it inherently more sustainable. Unlike traditional squaring methods that rely on manual adjustments and periodic checks, Squadra Vision uses advanced vision technology—including high-resolution cameras, laser sensors, and artificial intelligence—to monitor and control every aspect of the operation in real time.
This system is part of BMR’s broader “Vision” range, which emphasizes a shift toward Industry 5.0 principles. These principles focus on creating an “easy factory” where machines and humans collaborate seamlessly, reducing complexity and enhancing productivity. Squadra Vision can handle a wide variety of tile materials, from porcelain to monoporosa, and accommodates sizes up to 1800x3600mm—ideal for the growing demand for large-format slabs in modern architecture and design.
In practical terms, the machine operates with 9 or 12 calibrating units per side, depending on the model (such as the Squadra Vision Plus). Each unit is motorized with brushless motors for precise positioning, controlled via encoders that ensure accuracy down to the micron level. The integration of remote access and smart assistance features allows operators to monitor key performance indicators (KPIs) from anywhere, turning potential downtime into proactive maintenance opportunities.
Evolution from Traditional Squaring Methods
To appreciate Squadra Vision’s innovation, it’s essential to compare it with older squaring technologies. Traditional wet squaring machines, while effective, consume vast amounts of water and energy, often leading to higher operational costs and environmental footprints. Dry squaring, as pioneered by BMR’s earlier Squadra Dry models, marked a step forward by eliminating water needs and incorporating basic automation like laser sensors for outfeed measurements.
Squadra Vision builds on this foundation by introducing full digitalization. For instance, the original Squadra Dry used front grinding wheels to remove 25-50% of excess material, followed by resinoid wheels for smoothing. Squadra Vision enhances this with vision-based monitoring, where cameras capture real-time images of grinding wheels, allowing for automatic adjustments without opening spindle covers. This not only boosts safety but also extends tool life significantly.
The retrofit option, known as Squadra Vision Light, makes this technology accessible for existing lines. It’s a plug-and-play kit that provides continuous visual monitoring, reducing the barrier to entry for manufacturers hesitant about full overhauls.
Key Features of Squadra Vision
Intelligent Monitoring and Automation

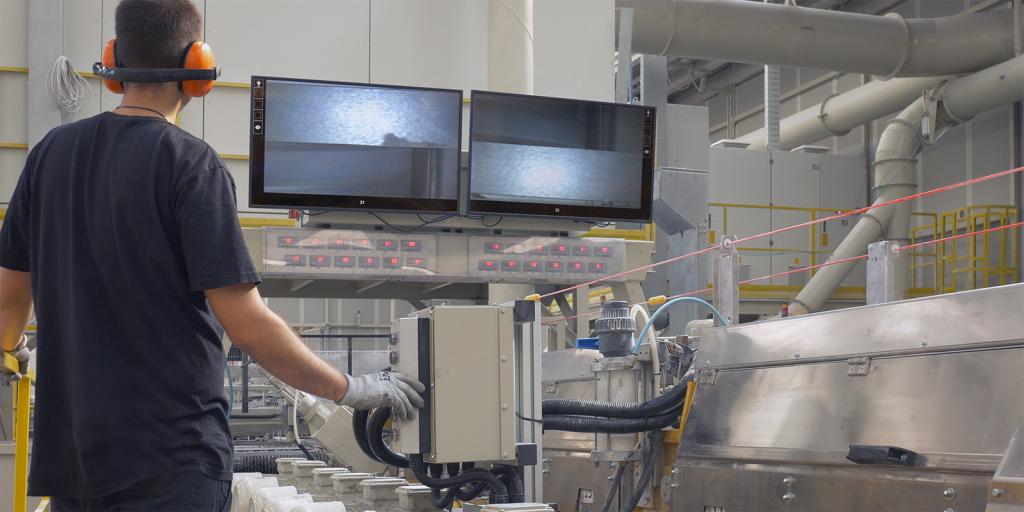

One of Squadra Vision’s standout features is its intelligent monitoring system. High-definition cameras positioned at each spindle capture live footage of grinding wheel conditions, detecting wear patterns before they impact quality. Coupled with laser sensors, the system measures tile dimensions on both long and short sides with exceptional precision, adjusting spindles automatically to maintain consistent squaring.
This automation extends to size changes: when switching tile formats, the machine reprograms itself via the operator panel, positioning tools with motorized verniers. The result? Zero manual handling of grinding wheels, which traditionally required stopping the line and risking inconsistencies. In tests, this has led to faster processing times and fewer errors, making it a game-changer for high-volume production.
Precision Engineering for Optimal Results
Precision is non-negotiable in ceramic tile squaring, where even minor deviations can lead to installation issues or aesthetic flaws. Squadra Vision achieves this through a combination of mechanical and digital elements. The central squaring/pushing device uses two arms that move faster than the conveyor belt, ensuring perfect perpendicularity. Chamfering options—either mechanical with springs or pneumatic with pressure controls—handle textured surfaces without compromising edge quality.
Technical details include metallic bond wheels with diamond coatings for initial roughing, followed by a sequence of resinoid wheels in coarse, medium, and fine grits. These are optimized for dry operation, with high thermal conductivity to prevent overheating. The system’s ability to balance grinding wheel consumption across all units ensures even wear, prolonging tool life by up to 15%.
Sustainability Built-In
Sustainability isn’t an afterthought in Squadra Vision—it’s core to its design. By operating dry, it eliminates water usage and the need for dryers, directly cutting energy costs by about 15%. Dust recovery systems further enhance eco-friendliness, allowing manufacturers to recycle squaring byproducts.
Compared to laser-based technologies, Squadra Vision consumes 40% less grinding wheel material under identical conditions (same removal rate, speed, and tile type). This reduction translates to lower production costs and a smaller carbon footprint, aligning with global sustainability goals. For environmentally conscious brands, this positions Squadra Vision as a tool for achieving green certifications without sacrificing performance.
Benefits for Ceramic Tile Manufacturers
Enhanced Productivity and Efficiency
In a competitive market, downtime is the enemy. Squadra Vision minimizes it through predictive maintenance features. By analyzing data from cameras and sensors, the system forecasts tool wear and suggests adjustments, often remotely. This can reduce unplanned stops by a significant margin, allowing lines to run at peak capacity.
For large-format tiles, the benefits are amplified. Traditional methods struggle with the weight and size of slabs up to 1600x3200mm, leading to inconsistencies. Squadra Vision’s digital controls ensure stable processing, with balanced wheel consumption that prevents uneven wear. Manufacturers report up to 15% savings in tool costs, freeing up budgets for other innovations.
Improved Quality and Consistency
Quality control is where Squadra Vision truly shines. Real-time KPIs displayed on the operator interface allow for instant verification of adjustments. Defective edges are detected faster, reducing waste and rework. In case studies, companies have noted improved dimensional precision, ensuring tiles meet stringent standards for flatness and squareness.
The system’s autonomy means less reliance on skilled operators for routine tasks, though it enhances their role in oversight. This human-machine synergy, per Industry 5.0, creates an ergonomic environment where workers focus on value-added activities rather than repetitive adjustments.
Cost Savings and ROI
While the initial investment in Squadra Vision might seem substantial, the return on investment (ROI) is compelling. Energy savings of 15%, combined with reduced tool wear and waste, can pay back the system within a few years. The Squadra Vision Light retrofit kit lowers entry costs, making it viable for smaller operations.
A practical example: In a facility processing 10,000 square meters daily, a 15% energy reduction could save thousands annually, not to mention the environmental credits from lower emissions.
How Squadra Vision Works: A Step-by-Step Guide
Initial Setup and Calibration
Installation begins with integrating the machine into the production line. For new setups, it’s configured with 9-12 calibrators per side; retrofits use the Light kit for seamless addition. Calibration involves setting baseline parameters via the digital interface, where lasers measure tile entry dimensions.
The Squaring Process
Tiles enter on a conveyor belt. Front grinding wheels remove bulk material (0.5-2mm per wheel), reducing thrust and pressure. Cameras monitor each wheel, feeding data to AI algorithms that adjust positions in real-time. Laser sensors at the outfeed verify sizes, triggering micro-adjustments if needed.
Chamfering follows, with floating units adapting to surface variations. The pushing device ensures squareness, and the entire process is dust-recovered for sustainability.
Monitoring and Maintenance
Throughout, the system logs data for analysis. Remote access allows technicians to diagnose issues without on-site visits. Predictive alerts notify when wheels need replacement, optimizing maintenance schedules.
Real-World Applications and Case Studies
Laminam: Precision for Large-Format Slabs
At Laminam’s Borgo Val di Taro facility in Italy, Squadra Vision has revolutionized squaring for large slabs. Operations Director Michele Perozzi reports a 15% energy saving and balanced grinding wheel use, stabilizing processes for formats up to 1600x3200mm. Quality consistency improved, reducing defects and enhancing the human-machine interface.
Energieker: Retrofit Success
Energieker in Modena upgraded with the Squadra Vision Light kit. Technical Director Antonio Bellei highlights 15% tool wear reduction and faster defect detection. This revamp shifted their approach to vision-based engineering, cutting waste and boosting safety.
Global Installations
With over 120 units worldwide, Squadra Vision is proven in diverse settings, from high-end porcelain producers to volume-driven factories. Its adaptability makes it suitable for emerging markets focused on sustainable growth.
Challenges and Solutions in Adoption
While Squadra Vision offers numerous advantages, challenges like integration with legacy systems exist. The Light kit addresses this by being independent. Training is minimal due to the intuitive interface, but BMR provides comprehensive support.
For controversial aspects, such as job displacement from automation, evidence shows it elevates roles rather than eliminates them, fostering skilled positions in monitoring and optimization.
| Aspect | Traditional Squaring | Squadra Vision |
|---|---|---|
| Energy Consumption | High (wet systems) | ۱۵% lower |
| Tool Wear | Uneven, frequent replacements | Up to 15% reduction, balanced |
| Water Usage | Significant | None (dry) |
| Precision | Manual-dependent | Digital, real-time adjustments |
| Sustainability | Lower (waste, emissions) | High (dust recovery, eco-friendly) |
| Format Handling | Limited to smaller sizes | Up to 1800x3600mm |
Future Prospects for Squadra Vision
As ceramic tile demands evolve toward larger, more intricate designs, Squadra Vision is poised for further enhancements. Potential integrations with AI for predictive analytics could push efficiency even higher. BMR’s ongoing R&D suggests expansions to other finishing processes, solidifying its role in smart manufacturing.
In conclusion, Squadra Vision stands as a beacon of innovation in ceramic tile squaring, blending digital automation with practical benefits for intelligence, precision, and sustainability. By adopting this technology, manufacturers not only streamline operations but also contribute to a greener industry. Whether upgrading an existing line or building anew, Squadra Vision offers a pathway to future-proof production. For those ready to embrace this transformation, the rewards in efficiency, quality, and cost savings are substantial—proving that smart automation is no longer a luxury but a necessity in today’s competitive landscape.
